Flocounter Economical Digital Water Flow Meter

home
Flocounter Economical Digital Water Flow Meter
Flocounter Economical Digital Water Flow Meter
Price And Quantity
  • Piece/Pieces
  • 1
  • Piece/Pieces, Piece/Pieces, Piece/Pieces
  • 2200.00Onwards
    Product Description

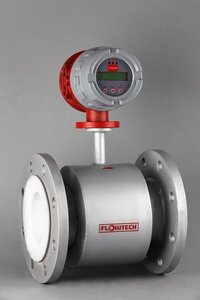

    FLOWTECH Make Electromagnetic Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faradays law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity & density of the flowing liquid.

    Working Principle:

    This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.

    Technical Detail:
    • Nominal Dia (mm): 15 to 400
    • Material of Construction: MS, SS 304, SS 316 & SS 316L
    • Electrode Material: SS 316, SS 316L, Hastelloy , & Tantalum
    • Process Pressure: Max. 25 kg/cm2
    • Process Temperature: Max. 150C
    • Flow Tube Material: SS 316
    • End Connection: Flange/Wafer
    • Flange- Standard: ANSI B 16.5 150 #RF / 300 # RF
    • Measuring Range: 0.5 m/sec for Minimum & 5m/sec for Maximum
    • Accuracy:  1% FSD
    • Optional: 0.5% FSD.
    • Repeatability: 0.3%
    • Display: 2 Line Alfa Numeric LCD
    • Display Version: Integral /Remote
    • Output: Std. 4 20 mA
    • Protection Class for Sensor: IP 65
    • Protection Class for Transmitter: IP 65
    • Cable Length for Remote: 10 meters
    • Installation: Inline Flange Type.
    Trade Information
    • Mumbai, Nhava Seva
    • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
    • 25 Per Week
    • 1 Week
    • Yes
    • Within a certain price range free samples are available
    • Wooden Boxes
    • All India
    • ISO 9001, 14001, 18001
