Rotameters

ViewView
  1. By Pass Rotameters

    Flowtech manufacture most economical, low cost and easy to maintain rotameters engraved with all the standard features. We use various options for material of construction of wetted parts for tolerating extreme conditions. Two tone powders coated excellent finishing with thread less, leakage less, corrosion free heavy duty design.
    Send Inquiry

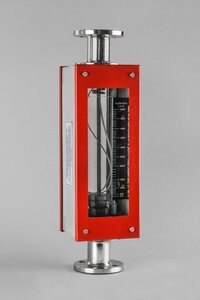

  2. Glass Tube Rotameters

    “FLOWTECH” Glass Tube Variable Area Flow Meters (Rotameters) are intended for general in-line and for By-Pass metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Glass metering tubes. It consists of a tapered tube, with a float inside that is pushed up by fluid flow and pulled down by gravity.Glass Tube Rotameters Manufacturers, Exporters Suppliers in India, GUJARAT The rotameters manufactured at Flowtech are ISO certified with the Single Piece (joint less) PTFE / PP claded end connections. For maximum durability various materials for construction like the enclosure of the rotameters is MS- Powder Coated, SS- Powder Coated or SS- Buffed and the glass used is Borosilicate and also it has thread less body making it complete corrosion free.We manufacture Glass Tube Rotameters in various sizes from ½” to 3” and with the range of 25M3/hr. Maximum visibility with high accuracy on a linear scale is one of the key features, accompanied with their Easy to maintain and Replace aspects which are suitable for on Line as well as By-Pass metering Installation.Flowtech Glass Tube Rotameters are adorned with the like Inductive Proximity Switch, Control unit, DIN Rail, Screwed fitting, Namur ABS housing, accepts the input of both 230 V AC/ 110 V AC and ability to be adjusted on Complete Span.Flowtech has Experienced R & D Department, Large Product Line and Good Financial Position & TQM along with ERP system to ensure best in class products and services to it’s not just domestic but International customers too.
    Send Inquiry
  3. Metal Tube Rotameter

    Metal Tube Variable Area Flow Meters (Rotameters) are mainly applied when high pressure, temperature or corrosive conditions where the use of conventional glass tube is not possible. They are designed to measure flow rate of liquids, gases & steam under critical conditions.
    Send Inquiry
  4. Acrylic Rotameter

    FLOWTECH” Acrylic Body Tube Variable Area Flow Meters (Rotameters) are intended for general in line metering applications (i.e. for Gas & Liquid) where operating conditions are with the limitations of Acrylic Body metering tubes. These are the principle of Variable Area. The float moves freely up and down tapered Acrylic body Tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The Vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. Accuracy : +/- 2% F.S.D. Temperature Ratings : Maximum Operating Temperature rating is 50 o C Repeatability : 0.5 % Connections : Flanged OR Screwed OR Triclover Joint OR Hose Nipple Rangebility : 10:1 Scale length : 180-200 mm Pressure Ratings : Meter Size Max. Operating Pressure (Kg/Cm2 g) 15 25 20 25 25 15 40 12 50 10 80 07 Tube : Imported Transparent Solid Acrylic Block. Float : SS 316, PTFE, others on request Packing : Neoprene, PTFE, Silicon, Viton End Fitting : M.S., C.S., SS304, SS316, CF-8M, CF8, PVC, others on request.
    Send Inquiry
